u-drilling

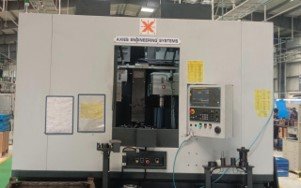

3 Station u-drilling, milling & Boring MC

Customer – Kalyani techno forge Ltd.

Component

Tube flange

Work Material

Forging

Features

  • Three axis CNC package - Fanuc Make
  • 4 station hydraulic indexing Ø 600 mm– Exact make
  • Fixture Unit with hydraulic component clamping.
  • Fixture designed for 2 nos. variants.
  • Load unload station zero.
  • Hi-win LM rail for slide unit.
  • Hydraulic power pack – 160 ltr. tank capacity.
  • Fully tooled up machine.
  • Slat type scraper conveyor.
  • Tool parking tray with interlocks.
